High Quality EMR Instruments Endoscopic Needle for Bronchoscope Gastroscope and Enteroscope manufacturers and suppliers

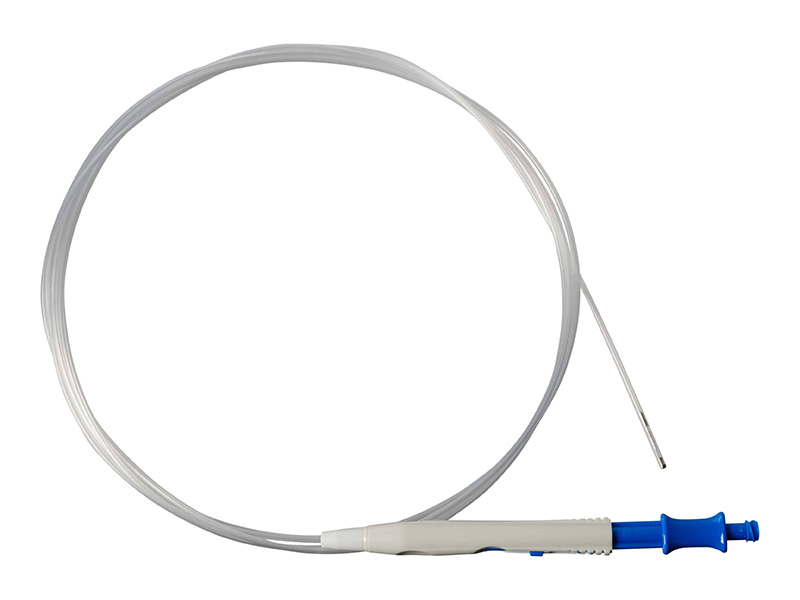

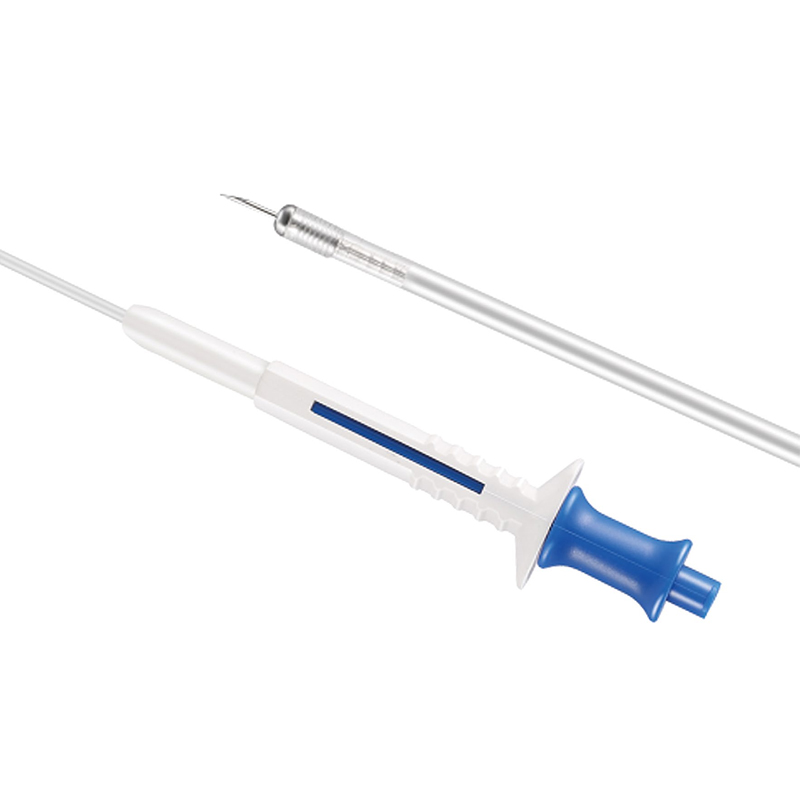

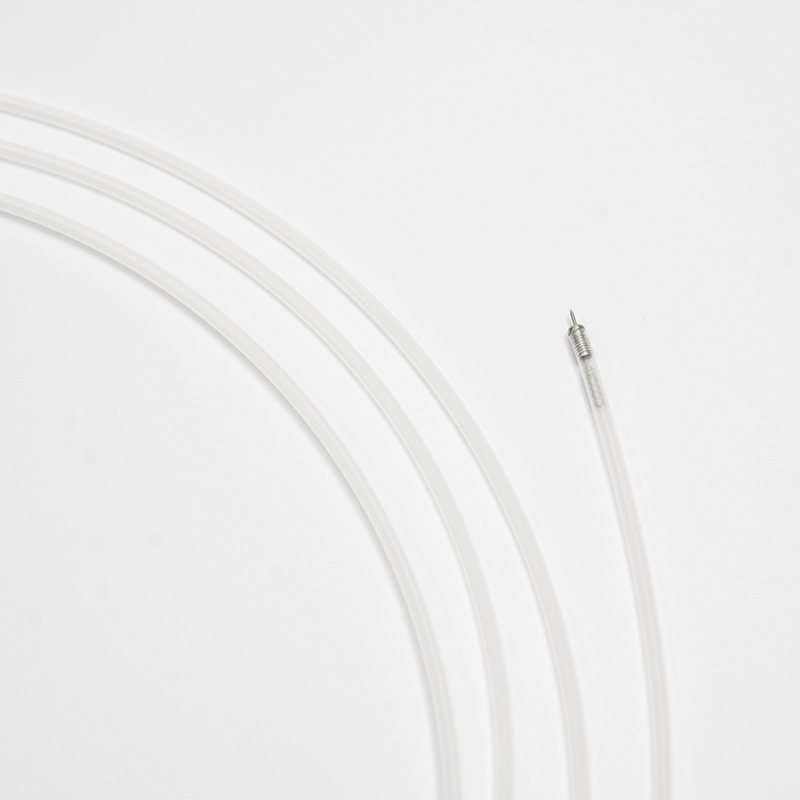

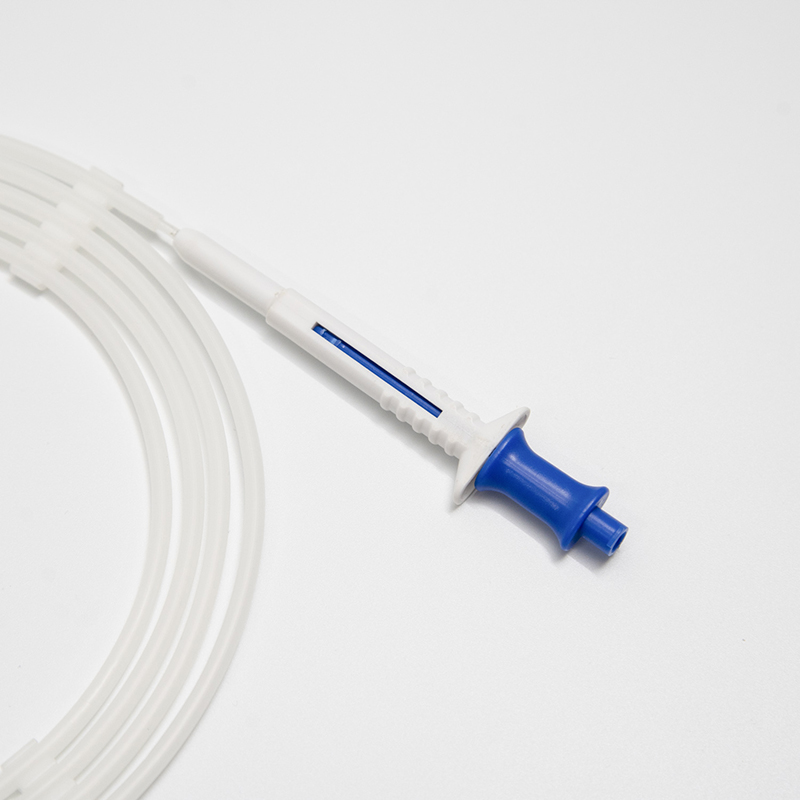

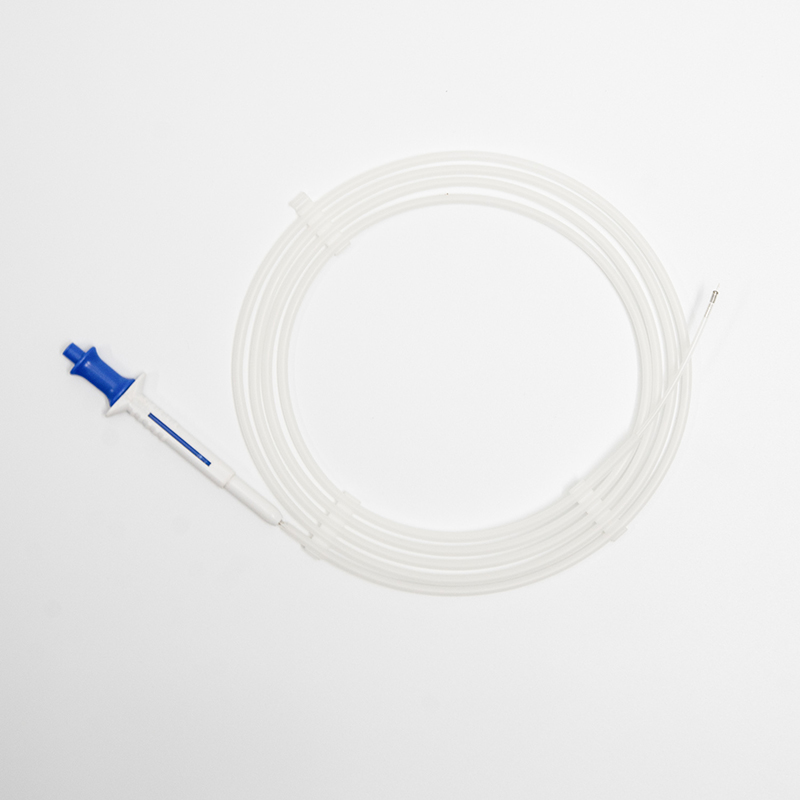

EMR Instruments Endoscopic Needle for Bronchoscope Gastroscope and Enteroscope

Short Description:

Product Detail:

● Appropriate for 2.0 mm & 2.8 mm instrument channels

● 4 mm 5 mm and 6mm needle working length

● Easy grip handle design provides better control

● Beveled 304 stainless steel needle

● Sterilized by E.O.

● Single use

● Shelf-life: 2 years

Options:

● Available as bulk or sterilized

● Available in customized working lengths

Send email to us

Product Detail

Product Tags

Application

Endoscopic injection needle, available in two gauges of 21,23 and 25 features a unique depth control functionality. Two lengths of 1800 mm and 2300 mm, allows the user to inject the desired substance accurately in lower and upper endoscopic injections to meet clinic's requirements including hemorrhage control, upper endoscopy, colonoscopy and gastroenterology. Strong, pushable sheath construction facilitates advancement through difficult pathways.

Specification

Model	Sheath O.D.D±0.1(mm)	Working Length L±50(mm)	Needle Size(Diameter/Length)	Endoscopic Channel(mm)
ZRH-PN-2418-214	Φ2.4	1800	21G,4mm	≥2.8
ZRH-PN-2418-234	Φ2.4	1800	23G,4mm	≥2.8
ZRH-PN-2418-254	Φ2.4	1800	25G,4mm	≥2.8
ZRH-PN-2418-216	Φ2.4	1800	21G,6mm	≥2.8
ZRH-PN-2418-236	Φ2.4	1800	23G,6mm	≥2.8
ZRH-PN-2418-256	Φ2.4	1800	25G,6mm	≥2.8
ZRH-PN-2423-214	Φ2.4	2300	21G,4mm	≥2.8
ZRH-PN-2423-234	Φ2.4	2300	23G,4mm	≥2.8
ZRH-PN-2423-254	Φ2.4	2300	25G,4mm	≥2.8
ZRH-PN-2423-216	Φ2.4	2300	21G,6mm	≥2.8
ZRH-PN-2423-236	Φ2.4	2300	23G,6mm	≥2.8
ZRH-PN-2423-256	Φ2.4	2300	25G,6mm	≥2.8

Products Description

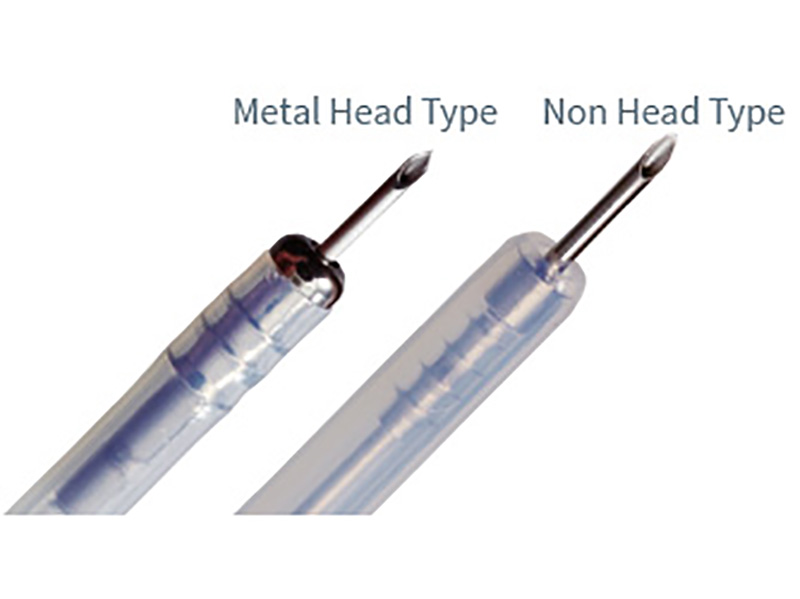

Needle Tip Angel 30 Degree
Sharp puncture

Transparent Inner Tube
Can be used to observe blood return.

Strong PTFE Sheath Construction
Facilitates advancement through difficult pathways.

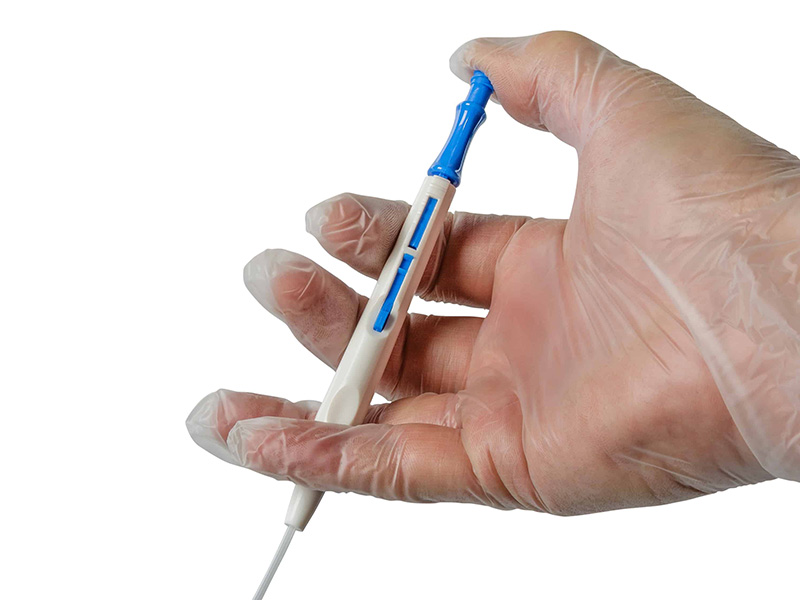

Ergonomic Handle Design
Easy to control the needle moving.

How the Disposable Endoscopic Needle Works

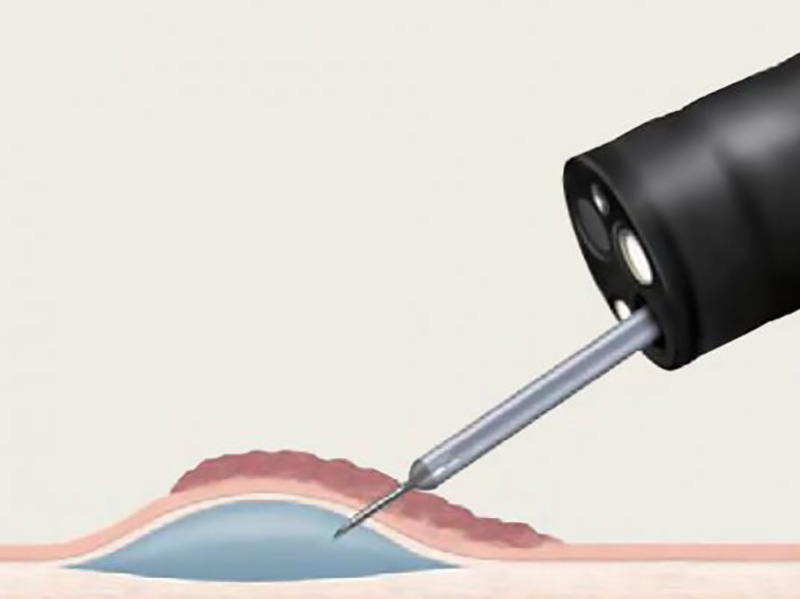

A endoscopic needle is used to inject fluid into the submucosal space to elevate the lesion away from the underlying muscularis propria and create a less flat target for resection.

Our Endoscopic Needle are widely in EMR or ESD.

Application of EMR/ESD accessories
Accessories needed for EMR operation include injection needle, polypectomy snares, hemoclip and ligation device (if applicable) single-use snare probe could be used for both EMR and ESD operations, it also names all-in-one due to its hybird functions. Ligation device could assist polyp ligate, also used for purse-string-suture under endoscop, the hemoclip is used for endoscopic hemostasis and clamping the wound in GI tract.
