It is used to guide dilation balloon and stent introducer device in upper and lower digestive tract and respiratory tract.
Model No. | Tip Type | Max. O.D. | Working Length ± 50 (mm) | |
± 0.004 (inch) | ± 0.1 mm | |||
ZRH-XBM-W-2526 | Angle | 0.025 | 0.63 | 2600 |
ZRH-XBM-W-2545 | Angle | 0.025 | 0.63 | 4500 |
ZRH-XBM-Z-2526 | Straight | 0.025 | 0.63 | 2600 |
ZRH-XBM-W-2545 | Straight | 0.025 | 0.63 | 4500 |
ZRH-XBM-W-3526 | Angle | 0.035 | 0.89 | 2600 |
ZRH-XBM-W-3545 | Angle | 0.035 | 0.89 | 4500 |
ZRH-XBM-Z-3526 | Straight | 0.035 | 0.89 | 2600 |
ZRH-XBM-Z-3545 | Straight | 0.035 | 0.89 | 4500 |
ZRH-XBM-W-2526 | Angle | 0.025 | 0.63 | 2600 |
ZRH-XBM-W-2545 | Angle | 0.025 | 0.63 | 4500 |
Anti-twist inner Niti core wire
Offering an excellent twisting and pushing force.
Smooth Smooth PTFE zebra coating
Easier to pass through the working channel, without any stimulation for tissue.

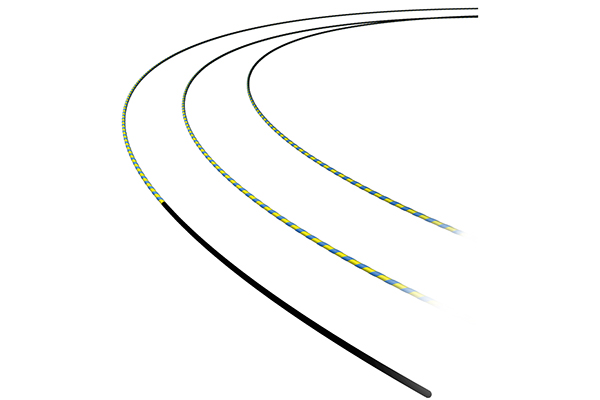

Yellow & Black Coating
Easier to track the guide wire and obvious under X-Ray

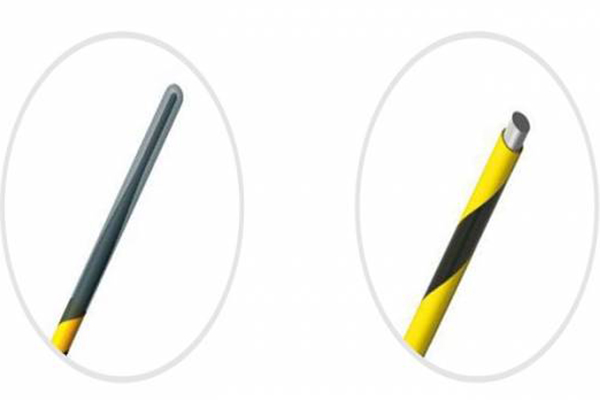

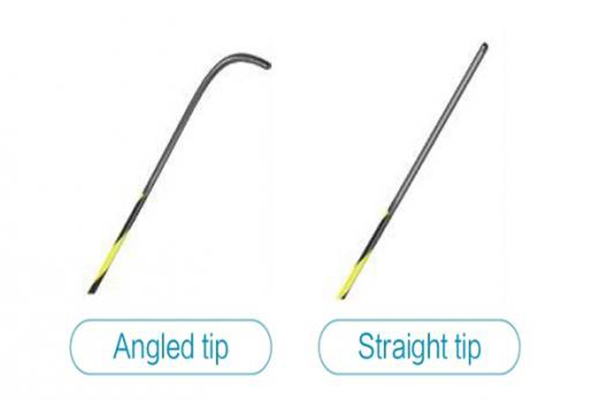

Straight tip design and angled tip design
Providing more control options for doctors.

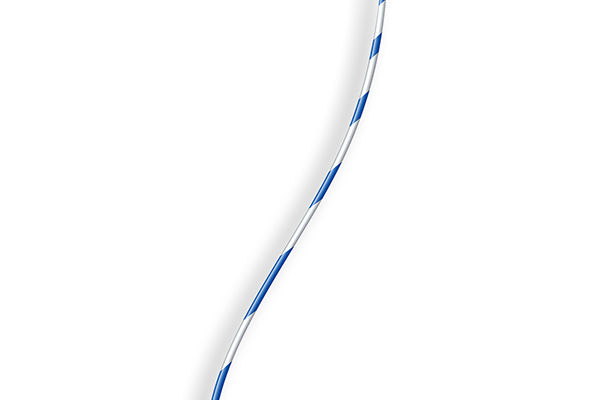

Customized services
Such as the blue and white coating.
Use rigidity of ERCP guidewire to change direction of duodenal papilla, so that radiography and cutting become more smoothly, and complications will be reduced.
When take out biliary stone in liver, let ERCP guidewire get into target bile duct, put lithotomy saccule or net along with ERCP guidewire, and remove the stone. Meanwhile, before placing bracket, the key for success is to put ERCP guidewire into target bile duct. Without ERCP guidewire rigidity, the work cannot be done.
