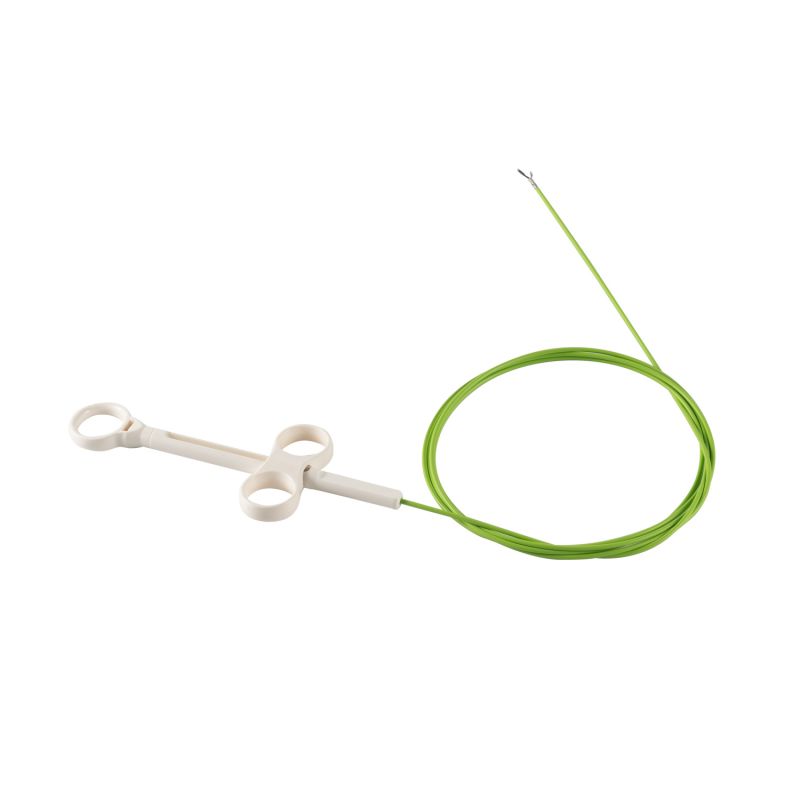

Disposable Gastric Repeated Opening and Closing Hemoclip
Disposable Gastric Repeated Opening and Closing Hemoclip
Application
Used to mechanically binds blood vessels. An endoclip is a metallic mechanical device used in endoscopy in order to close two mucosal surfaces without the need for surgery and suturing. Its function is similar to a suture in gross surgical applications, as it is used to join together two disjointed surfaces, but, can be applied through the channel of an endoscope under direct visualization. Endoclips have found use in treating gastrointestinal bleeding (both in the upper and lower GI tract), in preventing bleeding after therapeutic procedures such as polypectomy, and in closing gastrointestinal perforations.
Specification
| Model | Clip Opening Size (mm) | Working Length(mm) | Endoscopic Channel(mm) | Characteristics | |
| ZRH-HCA-165-9-L | 9 | 1650 | ≥2.8 | Gastro | Uncoated |
| ZRH-HCA-165-12-L | 12 | 1650 | ≥2.8 | ||
| ZRH-HCA-165-15-L | 15 | 1650 | ≥2.8 | ||
| ZRH-HCA-235-9-L | 9 | 2350 | ≥2.8 | Colon | |
| ZRH-HCA-235-12-L | 12 | 2350 | ≥2.8 | ||
| ZRH-HCA-235-15-L | 15 | 2350 | ≥2.8 | ||
| ZRH-HCA-165-9-S | 9 | 1650 | ≥2.8 | Gastro | Coated |
| ZRH-HCA-165-12-S | 12 | 1650 | ≥2.8 | ||
| ZRH-HCA-165-15-S | 15 | 1650 | ≥2.8 | ||
| ZRH-HCA-235-9-S | 9 | 2350 | ≥2.8 | Colon | |
| ZRH-HCA-235-12-S | 12 | 2350 | ≥2.8 | ||
| ZRH-HCA-235-15-S | 15 | 2350 | ≥2.8 | ||
Products Description

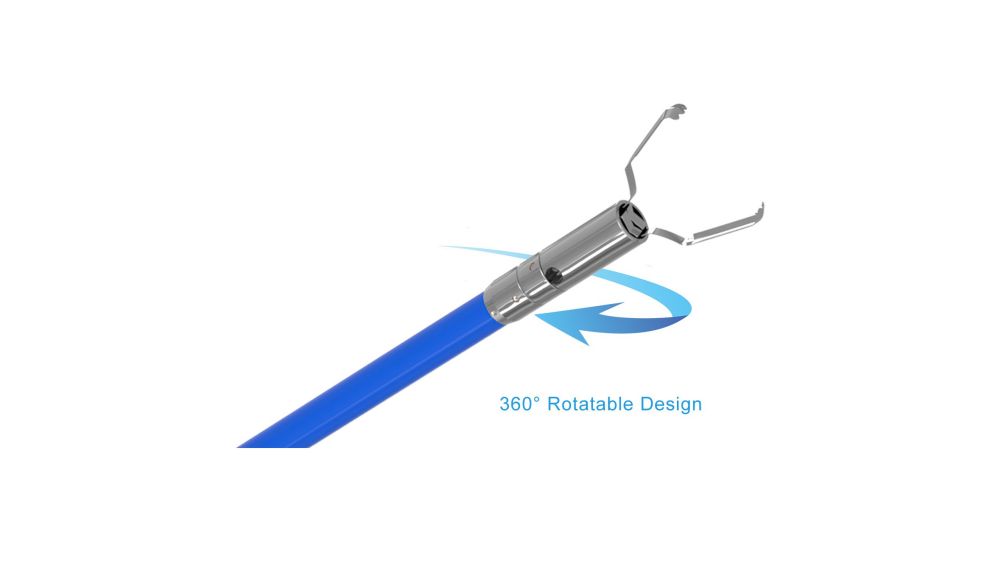

360°Rotatable Clip Degign
Offer a precise placement.
Atraumatic Tip
prevents the endoscopy from damage.
Sensitive Release System
easy to release clip provision.

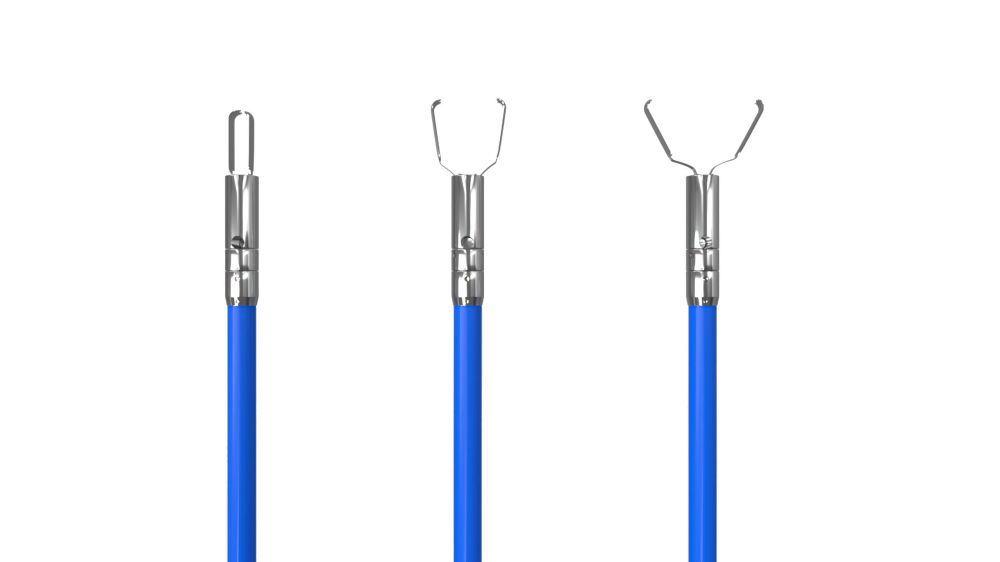

Repeated Opening and Closing Clip
for a accurate positioning.

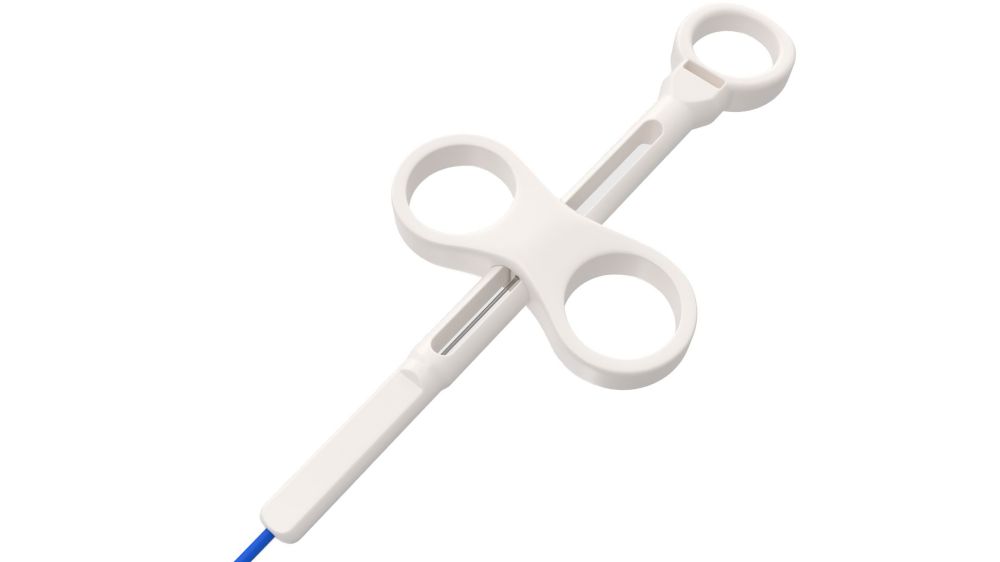

Ergonomically Shaped Handle
User Friendly

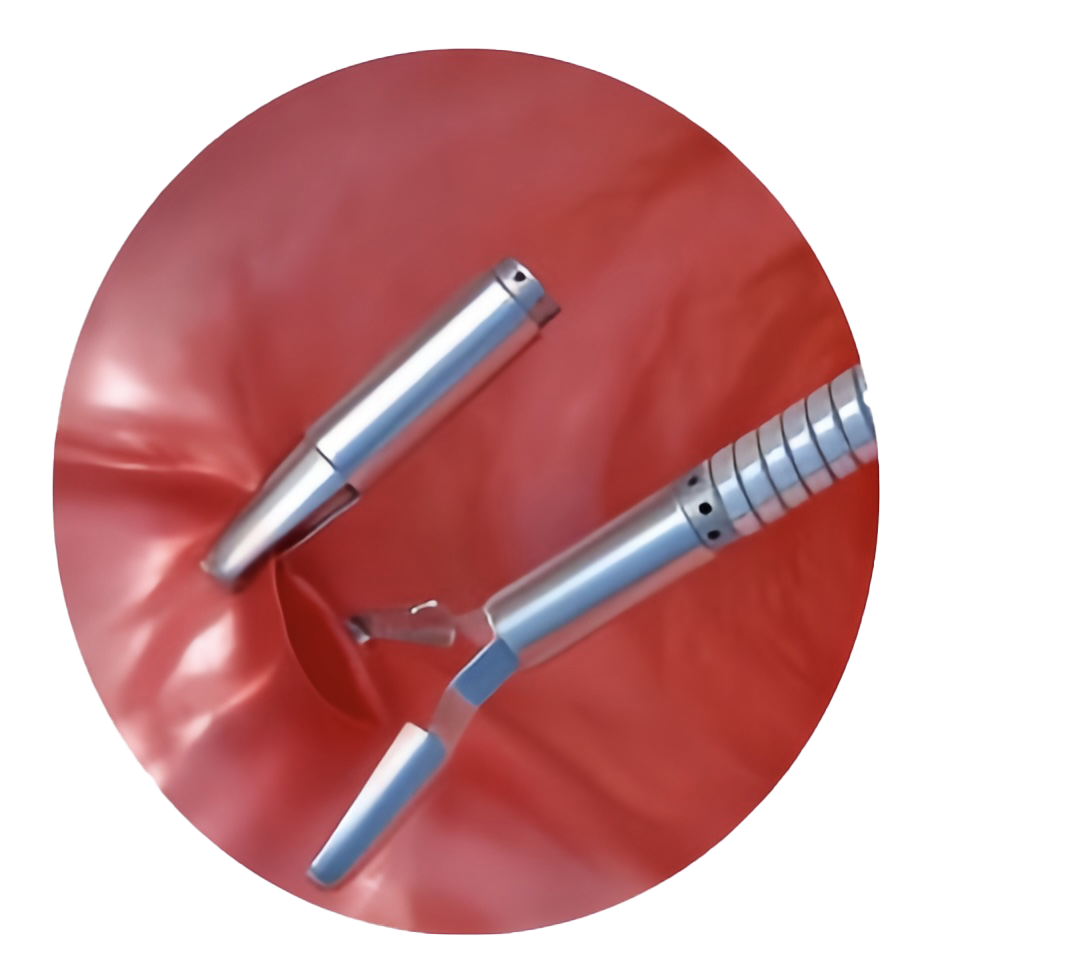

Clinical Use
The hemoclip can be placed within the Gastro-intestinal (GI) tract for the purpose of hemostasis for:
Mucosal/sub-mucosal defects < 3 cm
Bleeding ulcers, -Arteries < 2 mm
Polyps < 1.5 cm in diameter
Diverticula in the #colon
This clip can be used as a supplementary method for closure of GI tract luminal perforations < 20 mm or for #endoscopic marking.
Hemoclip Used in ESD
(1) Mark, use a needle incision or argon ion coagulation to mark the resection area with 0.5cm electrocoagulation at the edge of the lesion;
(2) Before submucosal injection of liquid, the clinically available liquids for submucosal injection include physiological saline, glycerol fructose, sodium hyaluronate and so on.
(3) Pre-cut the surrounding mucosa: use the ESD equipment to cut part of the mucosa around the lesion along the marking point or the outer edge of the marking point, and then use the IT knife to cut all the surrounding mucosa;
(4) According to different parts of the lesion and the operation habits of operators, ESD equipment IT, Flex or HOOK knife and other stripping instruments were selected to peel the lesion along the submucosa;
(5) For wound treatment, argon ion coagulation was used to electrocoagulate all visible small blood vessels in the wound to prevent postoperative bleeding. If necessary, hemostatic clamps were used to clamp the blood vessels.
