Disposable Endoscopic Resection Polypectomy Snare for Gastroenterology
Disposable Endoscopic Resection Polypectomy Snare for Gastroenterology
Application

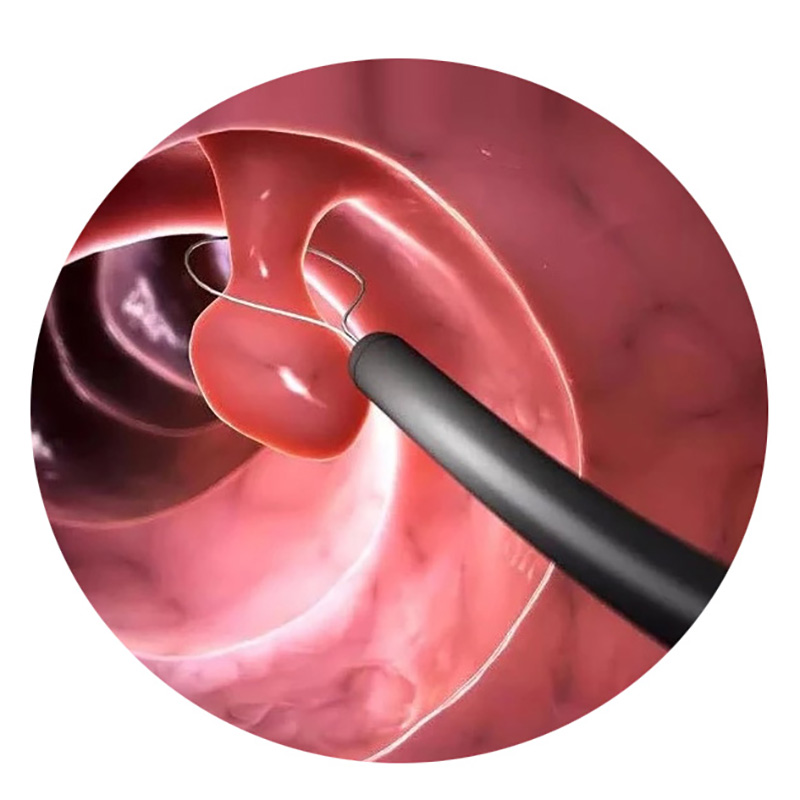

For excising polyps and other redundant tissues in GI tract, by high frequency electricity in combination with endoscope.
Specification
| Model | Loop Width D-20%(mm) | Working Length L ± 10%(mm) | Sheath O.D.D ± 0.1(mm) | Characteristics | |
| ZRH-RA-18-120-15-R | 15 | 1200 | Φ1.8 | Oval Snare | Rotation |
| ZRH-RA-18-120-25-R | 25 | 1200 | Φ1.8 | ||
| ZRH-RA-18-160-15-R | 15 | 1600 | Φ1.8 | ||
| ZRH-RA-18-160-25-R | 25 | 1600 | Φ1.8 | ||
| ZRH-RA-24-180-15-R | 15 | 1800 | Φ2.4 | ||
| ZRH-RA-24-180-25-R | 25 | 1800 | Φ2.4 | ||
| ZRH-RA-24-180-35-R | 35 | 1800 | Φ2.4 | ||
| ZRH-RA-24-230-15-R | 15 | 2300 | Φ2.4 | ||
| ZRH-RA-24-230-25-R | 25 | 2300 | Φ2.4 | ||
| ZRH-RB-18-120-15-R | 15 | 1200 | Φ1.8 | Hexagonal Snare | Rotation |
| ZRH-RB-18-120-25-R | 25 | 1200 | Φ1.8 | ||
| ZRH-RB-18-160-15-R | 15 | 1600 | Φ1.8 | ||
| ZRH-RB-18-160-25-R | 25 | 1600 | Φ1.8 | ||
| ZRH-RB-24-180-15-R | 15 | 1800 | Φ1.8 | ||
| ZRH-RB-24-180-25-R | 25 | 1800 | Φ1.8 | ||
| ZRH-RB-24-180-35-R | 35 | 1800 | Φ1.8 | ||
| ZRH-RB-24-230-15-R | 15 | 2300 | Φ2.4 | ||
| ZRH-RB-24-230-25-R | 25 | 2300 | Φ2.4 | ||
| ZRH-RB-24-230-35-R | 35 | 2300 | Φ2.4 | ||
| ZRH-RC-18-120-15-R | 15 | 1200 | Φ1.8 | Crescent Snare | Rotation |
| ZRH-RC-18-120-25-R | 25 | 1200 | Φ1.8 | ||
| ZRH-RC-18-160-15-R | 15 | 1600 | Φ1.8 | ||
| ZRH-RC-18-160-25-R | 25 | 1600 | Φ1.8 | ||
| ZRH-RC-24-180-15-R | 15 | 1800 | Φ2.4 | ||
| ZRH-RC-24-180-25-R | 25 | 1800 | Φ2.4 | ||
| ZRH-RC-24-230-15-R | 15 | 2300 | Φ2.4 | ||
| ZRH-RC-24-230-25-R | 25 | 2300 | Φ2.4 | ||
Products Description

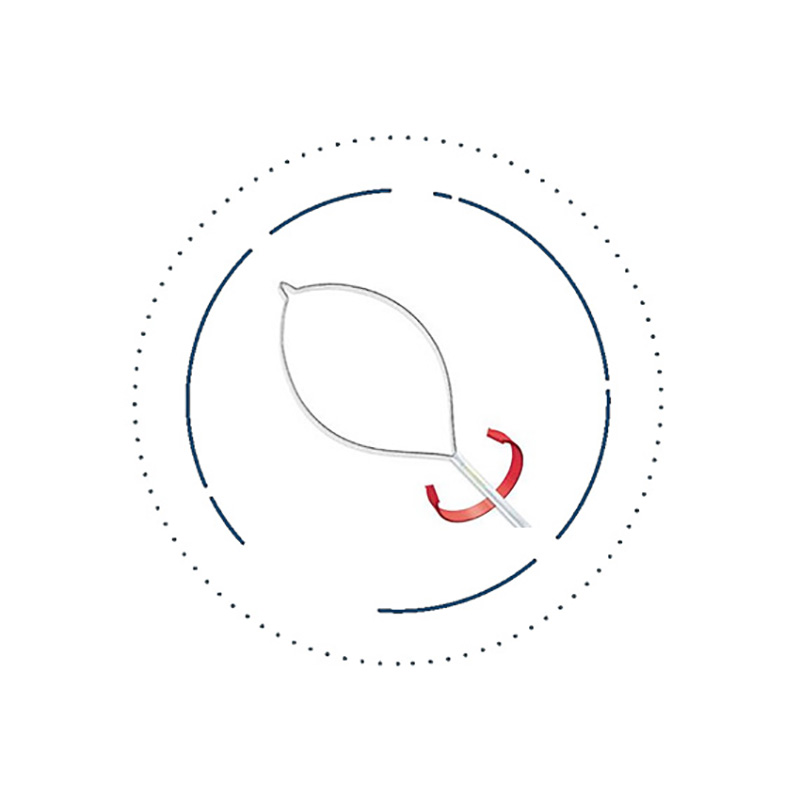

360°Rotatable Snare Degign
Provide 360 degree rotation to help access difficult polyps.
Wire in a Braided Construction
makes the polys not easy to slip off
Soomth Open and Close Mechanism
for optimum easy of use
Rigid Medical Stainless-Steel
Offer a precise and quick cutting properties.
Smooth Sheath
Prevent damage to your endoscopic channe
Standard Power Connection
Compatible with all main high-frequency devices on the market
Clinical Use
| Target Polyp | Removal Instrument |
| Polyp <4mm in size | Forceps(cup size 2-3mm) |
| Polyp in size of 4-5mm | Forceps(cup size 2-3mm) Jumbo forceps(cup size>3mm) |
| Polyp <5mm in size | Hot forceps |
| Polyp in size of 4-5mm | Mini-Oval Snare(10-15mm) |
| Polyp in size of 5-10mm | Mini-Oval Snare(prefered) |
| Polyp>10mm in size | Oval, Hexagonal Snares |
What is the Composition of polyp snare?
With a long history in TCRP, polyp snare is most widely used and classic. Through continuous development, the materials and technology of polyp snare continue to improve, combining with demands of endoscopy doctor, its kinds begin to boom.

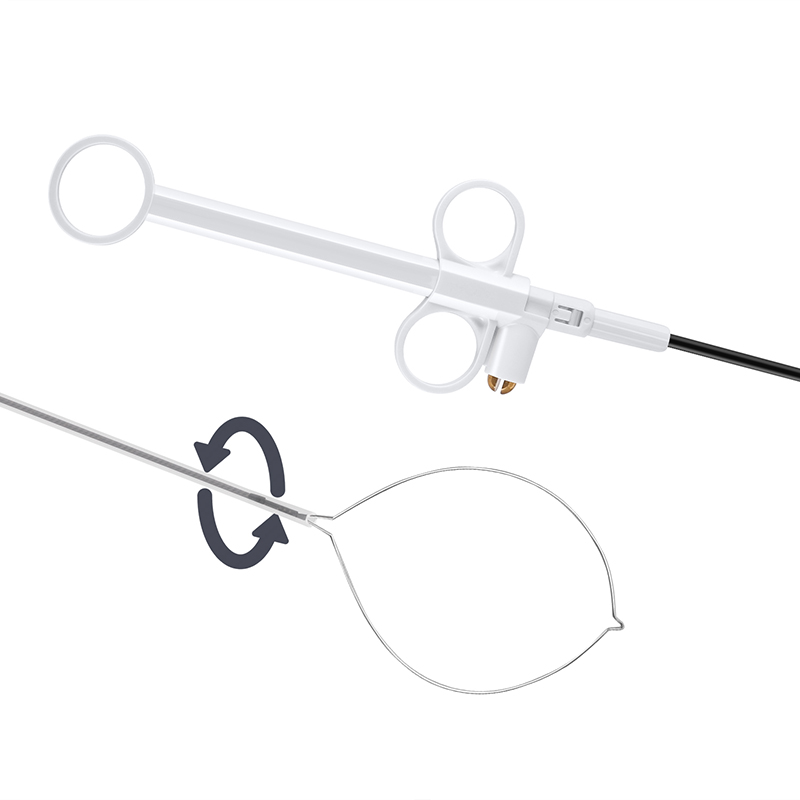

Electric polyp snare is mainly composed of handle, snare core and outer sheathing canal. The function of polyp snare mainly focuses on snare core. According to different shapes of polyp snare cores, there are circle (rigid oval), oval (soft oval), spiral coil oval, semicircle, hexagon, and other shapes.
Polyp snare core uses steel wire material, for the ease of conduct electricity and with strong tension, which can realize good effect of tightening removal.
-
